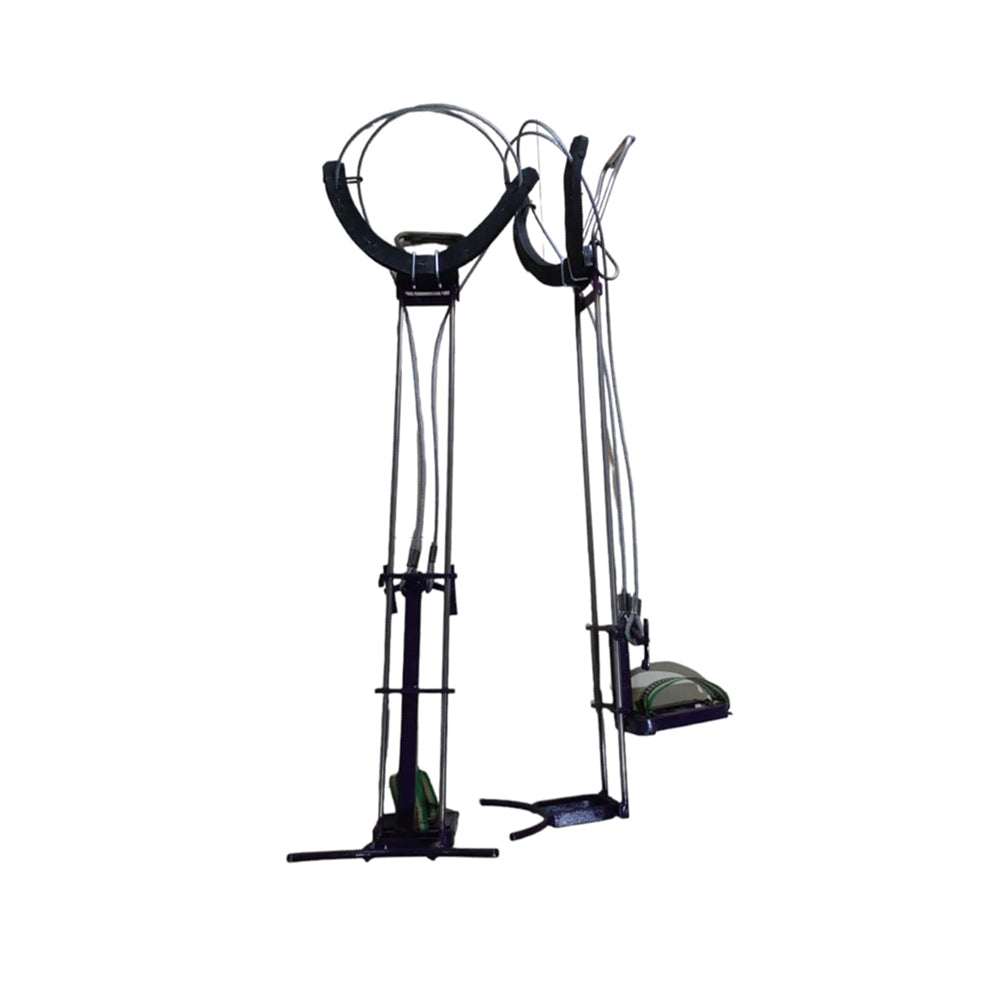

Coconut Tree Climber 2 Rod

Main Frame (RHS) Construction details : It is made up of single steel rod Size of steel rod, (mm) : 2204010 - 1 Nos. Method...

Rs. 3,300.00

In stock!

Main Frame (RHS)
Construction details : It is made up of single steel rod
Size of steel rod, (mm) : 2204010 - 1 Nos.
Method of fixing : Welded to tree holder.
Main Frame (LHS)
Construction details : It is made up of single steel rod
Size of steel rod, (mm) : 2382010-1 Nos
Method of fixing : Welded to tree holder.
Tree Holder (RHS &LHS)
Construction details : It is fabricated by MS Flat and rod
Sliding Frame with Foot Holder (RHS)
Construction details : It is made up of MS angle , MS flat and MS rod
Sliding Frame with Foot Holder (LHS)
Construction details : It is made up of MS angle , MS flat and MS rod
Handle (RHS)
Construction Details : It is made up of single steel rod
Method of fixing : Top portion of the main frame used as handle
Handle (LHS)
Construction Details : It is made up of single steel rod
Method of fixing : Top portion of the main frame used as handle
Steel Rope Wire (RHS)
Construction Details : It is made up of single steel rod
Steel Rope Wire (LHS)
Construction details :Single length steel rope wire with eyes on both ends using thimble and sleeve clip
Overall Dimensions (Refer fig. 1 )
Length,(mm)
LHS : 1095
RHS : 1180
Width,(mm)
LHS : 272
RHS : 350
Height,(mm)
LHS : 360
RHS : 360
